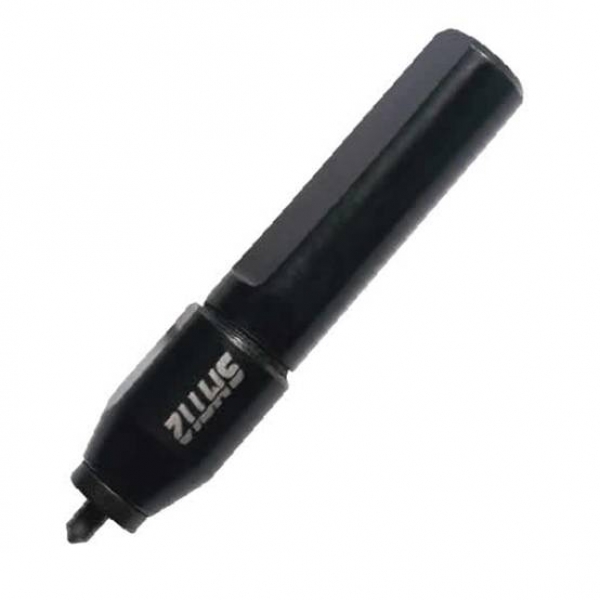

SMT 20 marking tool handle
SMT 20 is a scratch marking tool handle for CNC machining centers.
It has elastic adjustment mechanism applied to different material hardness
It is suitable for marking materials with hardness up to 60-62hrc
It is driven by compressed air or internal cooling without spindle rotation.
Fast speed
Economical alternative of point marking tool handle
If the machine does not support z-axis movement and does not rotate, it can be used at low speed.

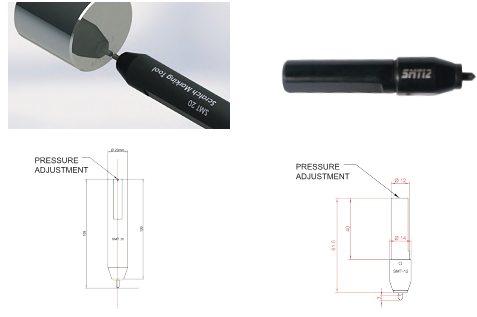

Marking of rough surfaces (4mm offset distance) can be made by means of a distance compensation mechanism
SMT 12
SMT 12 is a scratch marking tool for CNC machining centers.
It has elastic adjustment mechanism applied to different material hardness
It is suitable for marking materials with hardness up to 60-62hrc
It is driven by compressed air or internal cooling without spindle rotation.
Fast speed
Economical alternative of point marking tool handle
If the machine does not support z-axis movement and does not rotate, it can be used at low speed.
Marking of rough surfaces (3mm offset distance) can be made by means of a distance compensation mechanism
1. Marking is regarded as a step of processing, which avoids the time-consuming and laborious manual marking and has a high degree of automation;
2. The marking process has no metal cutting and high speed to prevent damage to the workpiece or cutting off the material fiber of the workpiece;
3. The tool handle can be powered by coolant or by external air source or directly scraped without power;
4. It is suitable for machining center machine tools, and can be placed in the tool magazine for automatic tool change;
