SAVANT 铲钻:是传统麻花钻的升级替代产品,可应用于数控设备及各种传统设备上,如:立钻、摇臂钻等
savant铲钻刀片分为硬质合金和高速钢两种材质,所安装的刀杆也不相同,不能互换
立钻、摇臂钻上推荐使用高速钢刀片,不建议使用硬质合金刀片,因为机床转速低,刚性差,间隙大,容易造成硬质合金刀片崩刃。
Savant铲钻优势:
铲钻刀头(刀片)为含钴高速钢及粉末高速钢,切削性能强。
所有savant铲钻刀杆均有中心出水孔,推荐使用尽量高压高流量的冷却系统,这样可以大大延长刀片的使用寿命,同时也更有利于排屑。
刀片带有断屑槽,铁屑呈碎状,利于排屑及提高安全性
可以一次加工到底,无需像普通高速钢麻花钻一样回退,效率更高
支持深孔加工,尺寸精度10丝以内,可作为精加工刀具。
钻孔光洁度1.6——3.2Ra
线速度推荐20——40米/分 ,刀头(刀片)为双刃(区别于U钻),双刃进给F0.2-0.6mm/转
savant铲钻特点:
Savant铲钻接收客户图纸定做,可制成带倒角、沉孔、台阶等非标钻头

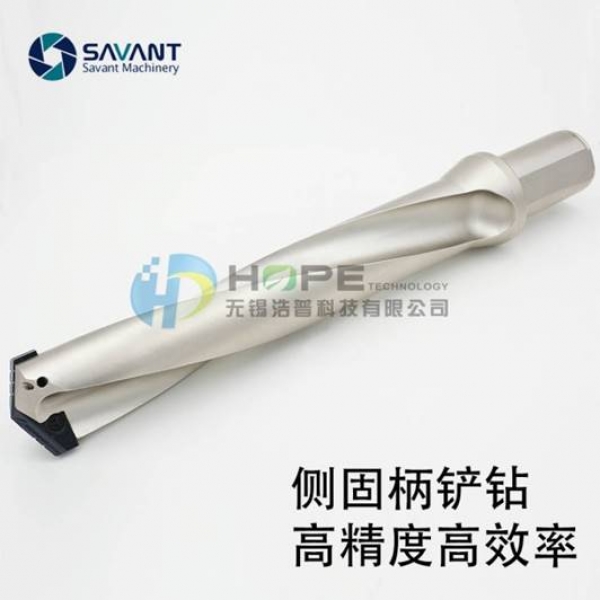

夹持柄部包含三种类型:侧固、直柄、莫氏
savant铲钻标准品加工范围:9.05-114.00mm
savant铲钻钻深可达:30*D (30倍径)
每个规格钻杆可以安装一个范围的钻头刀片
铲钻刀头(刀片)有加工钢件、铸铁、不锈钢、铝合金等不同刀片
两种铲钻刀头(刀片)材质:高速钢涂层与硬质合金涂层
省去了磨钻头和为单种规格孔买一只钻头的成本
savant铲钻刀片具有自定心功能,双刃对称均匀受力,适合加工深孔。长径比在5倍径以内的,优先选择Savant快速钻(U钻).超出5倍径推荐使用Savant铲钻。
在冷却压力够高,流量够大,排屑顺畅的情况下,Savant铲钻可以连续钻孔,而不用回退排屑。
铲钻型号说明:
型号说明:SD为铲钻总称呼,S/H分别为直槽/螺旋槽 |
|
00系列(φ13.0-φ17.5) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD00S-23-XP20 | 22 | 47.6 | 50.4 | 97.6 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00S-35-XP20 | 35 | 63.5 | 66.3 | 113.5 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00H-64-XP20 | 63 | 92.1 | 94.9 | 142.1 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00H-114-XP20 | 114 | 142.9 | 145.7 | 192.9 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00H-178-XP20 | 178 | 206.4 | 209.1 | 256.4 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00S-240-XP20 | 240 | 268.6 | 271.3 | 318.6 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00S-295-XP20 | 295 | 323.9 | 326.7 | 373.9 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD00S-387-XP20 | 387 | 416 | 418.8 | 466 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
05系列(φ15.5-φ17.5) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD05S-23-XP20 | 22 | 47.6 | 50.4 | 97.6 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05S-35-XP20 | 35 | 63.5 | 66.3 | 113.5 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05H-64-XP20 | 63 | 92.1 | 94.9 | 142.1 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05H-114-XP20 | 114 | 142.9 | 145.7 | 192.9 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05H-178-XP20 | 178 | 206.4 | 209.1 | 256.4 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05S-240-XP20 | 240 | 268.6 | 271.3 | 318.6 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05S-295-XP20 | 295 | 323.9 | 326.7 | 373.9 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
SD05S-387-XP20 | 387 | 416 | 418.8 | 466 | 20 | 50 | 1/8 | M2.5*6 | T8 |
|
10系列(φ17.6-φ24.4) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD10S-48-XP25 | 48 | 75.8 | 79.4 | 131.8 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10S-67-XP25 | 67 | 107.2 | 110.7 | 163.1 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10H-118-XP25 | 118 | 154.8 | 158.4 | 210.8 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10H-168-XP25 | 168 | 205.6 | 209.2 | 261.6 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10H-218-XP25 | 218 | 255.3 | 258.9 | 311.3 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10H-270-XP25 | 270 | 307.2 | 310.8 | 363.2 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10S-365-XP25 | 365 | 402.2 | 405.8 | 458.2 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10S-457-XP25 | 457 | 494.5 | 498.1 | 550.5 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD10S-569-XP25 | 569 | 602.5 | 606.1 | 658.5 | 25 | 56 | 1/8 | M3*8 | T8 |
|
15系列(φ22.0-φ24.4) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD15S-57-XP25 | 57 | 88.5 | 92.1 | 144.5 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15S-67-XP25 | 67 | 107.2 | 110.7 | 163.1 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15H-118-XP25 | 118 | 154.8 | 158.4 | 210.8 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15H-168-XP25 | 168 | 205.6 | 209.2 | 261.6 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15H-218-XP25 | 218 | 255.3 | 258.9 | 311.3 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15H-270-XP25 | 270 | 307.2 | 310.8 | 363.2 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15S-365-XP25 | 365 | 402.2 | 405.8 | 458.2 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15S-457-XP25 | 457 | 494.5 | 498.1 | 550.5 | 25 | 56 | 1/8 | M3*8 | T8 |
|
SD15S-569-XP25 | 569 | 602.5 | 606.1 | 658.5 | 25 | 56 | 1/8 | M3*8 | T8 |
|
20系列(φ24.5-φ35.0) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD20S-57-XP32 | 57 | 88.5 | 92.1 | 148.5 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20S-86-XP32 | 86 | 128.6 | 132.2 | 188.6 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20H-137-XP32 | 137 | 179.4 | 183 | 239.4 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20H-187-XP32 | 187 | 230.2 | 233.8 | 290.2 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20H-237-XP32 | 237 | 279.9 | 283.5 | 339.9 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20H-289-XP32 | 289 | 331.8 | 335.4 | 391.8 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20H-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20S-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20S-511-XP32 | 511 | 554.1 | 557.7 | 614.1 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD20S-692-XP32 | 692 | 735.1 | 738.7 | 795.1 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
25系列(φ30.0-φ35.0) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD25S-92-XP32 | 92 | 123.4 | 127 | 183.4 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25S-86-XP32 | 86 | 128.6 | 132.2 | 188.6 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25H-137-XP32 | 137 | 179.4 | 183 | 239.4 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25H-187-XP32 | 187 | 230.2 | 233.8 | 290.2 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25H-237-XP32 | 237 | 279.9 | 283.5 | 339.9 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25H-289-XP32 | 289 | 331.8 | 335.4 | 391.8 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25H-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25S-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25S-511-XP32 | 511 | 554.1 | 557.7 | 614.1 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
SD25S-692-XP32 | 692 | 735.1 | 738.7 | 795.1 | 32 | 60 | 1/4 | M3.5*10 | T15 |
|
30系列(φ35.1-φ47.9) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD30S-76-XP40 | 76 | 125 | 129.8 | 195 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30S-121-XP40 | 121 | 173 | 177.8 | 243 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30H-165-XP40 | 165 | 217.5 | 222.3 | 287.5 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30H-210-XP40 | 210 | 261.9 | 266.7 | 331.9 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30H-260-XP40 | 260 | 312.3 | 317.1 | 382.3 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30S-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30H-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30S-559-XP40 | 559 | 611.1 | 615.9 | 681.1 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD30S-787-XP40 | 787 | 839.7 | 844.5 | 909.7 | 40 | 70 | 1/4 | M5*10 | T20 |
|
35系列(φ42.0-φ47.9) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD35S-76-XP40 | 76 | 125 | 129.8 | 195 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35S-121-XP40 | 121 | 173 | 177.8 | 243 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35H-165-XP40 | 165 | 217.5 | 222.3 | 287.5 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35H-210-XP40 | 210 | 261.9 | 266.7 | 331.9 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35H-260-XP40 | 260 | 312.3 | 317.1 | 382.3 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35S-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35H-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35S-559-XP40 | 559 | 611.1 | 615.9 | 681.1 | 40 | 70 | 1/4 | M5*10 | T20 |
|
SD35S-787-XP40 | 787 | 839.7 | 844.5 | 909.7 | 40 | 70 | 1/4 | M5*10 | T20 |
|
40系列(φ48.0-φ65.28) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD40S-130-XP40 | 130 | 179.4 | 184.2 | 249.4 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40H-232-XP40 | 232 | 281 | 285.8 | 351 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40S-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40H-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40S-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40H-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40S-525-XP40 | 525 | 574.2 | 579 | 644.2 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40S-625-XP40 | 625 | 674.7 | 679.5 | 744.7 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD40S-879-XP40 | 879 | 928.7 | 933.5 | 998.7 | 40 | 70 | 1/4 | M5*15 | T20 |
|
45系列(φ56.0-φ65.28) |
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD45S-130-XP40 | 130 | 179.4 | 184.2 | 249.4 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45H-232-XP40 | 232 | 281 | 285.8 | 351 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45S-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45H-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45H-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45S-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45S-525-XP40 | 525 | 574.2 | 579 | 644.2 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45S-625-XP40 | 625 | 674.7 | 679.5 | 744.7 | 40 | 70 | 1/4 | M5*15 | T20 |
|
SD45S-879-XP40 | 879 | 928.7 | 933.5 | 998.7 | 40 | 70 | 1/4 | M5*15 | T20 |
|
50系列(φ65.3-φ89.08) |
|
|
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD50S-171-XP50 | 171 | 235 | 240 | 315 | 50 | 80 | 1/2 | M6*15 | T25 |
|
SD50S-350-XP50 | 350 | 414 | 419 | 494 | 50 | 80 | 1/2 | M6*15 | T25 |
|
SD50S-660-XP50 | 660 | 724 | 729 | 804 | 50 | 80 | 1/2 | M6*15 | T25 |
|
70系列(φ89.1-φ114.48) |
|
|
|
|
型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 |
|
SD70S-200-XP50 | 200 | 275 | 280 | 355 | 50 | 80 | 1/2 | M6*15 | T25 |
|
SD70S-400-XP50 | 400 | 475 | 480 | 555 | 50 | 80 | 1/2 | M6*15 | T25 |
|
SD70S-800-XP50 | 800 | 875 | 880 | 955 | 50 | 80 | 1/2 | M6*15 | T25 |
|
莫氏柄铲钻 |
00系列(φ13.0-φ17.5) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD00S-35-MT2 | 35 | 55.5 | 95.4 | 167.3 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
SD00H-63-MT2 | 63 | 84.1 | 124 | 195.9 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
SD00H-114-MT2 | 114 | 135 | 174.8 | 246.7 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
SD00H-178-MT2 | 178 | 198.5 | 238.3 | 310.2 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
05系列(φ15.5-φ17.5) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD05S-35-MT2 | 35 | 55.5 | 95.4 | 167.3 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
SD05H-63-MT2 | 63 | 84.1 | 124 | 195.9 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
SD05H-114-MT2 | 114 | 135 | 174.8 | 246.7 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
SD05H-178-MT2 | 178 | 198.5 | 238.3 | 310.2 | MT2 | 1/16 | RK-MT2R | M2.5*6 | T8 |
10系列(φ17.6-φ24.4) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD10S-70-MT3 | 70 | 98.4 | 149 | 239 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD10H-121-MT3 | 121 | 149.2 | 199.8 | 289.8 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD10H-171-MT3 | 171 | 200 | 250.6 | 340.7 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD10H-222-MT3 | 222 | 250.5 | 301.1 | 391.2 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD10H-273-MT3 | 273 | 301.6 | 352.2 | 442.3 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
15系列(φ22.0-φ24.4) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD15S-70-MT3 | 70 | 98.4 | 149 | 239 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD15H-121-MT3 | 121 | 149.2 | 199.8 | 289.8 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD15H-171-MT3 | 171 | 200 | 250.6 | 340.7 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD10H-222-MT3 | 222 | 250.5 | 301.1 | 391.2 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
SD15H-273-MT3 | 273 | 301.6 | 352.2 | 442.3 | MT3 | 1/8 | RK-MT3R | M3*8 | T8 |
20系列(φ24.5-φ35.0) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD20S-86-MT4 | 86 | 114.3 | 172.9 | 286.3 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD20H-137-MT4 | 137 | 165.1 | 223.7 | 337.1 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD20H-187-MT4 | 187 | 215.9 | 274.5 | 387.9 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD20H-237-MT4 | 237 | 265.6 | 324.2 | 437.6 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD20H-289-MT4 | 289 | 317.5 | 376.1 | 489.5 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD20S-400-MT4 | 400 | 428.5 | 487.1 | 600 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD20H-400-MT4 | 400 | 428.5 | 487.1 | 600 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
25系列(φ30.0-φ35.0) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD25S-86-MT4 | 86 | 114.3 | 172.9 | 286.3 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD25H-137-MT4 | 137 | 165.1 | 223.7 | 337.1 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD25H-187-MT4 | 187 | 215.9 | 274.5 | 387.9 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD25H-237-MT4 | 237 | 265.6 | 324.2 | 437.6 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD25H-289-MT4 | 289 | 317.5 | 376.1 | 489.5 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD25S-400-MT4 | 400 | 428.5 | 487.1 | 600 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
SD25H-400-MT4 | 400 | 428.5 | 487.1 | 600 | MT4 | 1/4 | RK-MT4R | M3.5*10 | T15 |
30系列(φ35.1-φ47.9) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD30S-121-MT4 | 121 | 152.4 | 211.7 | 324.4 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30H-165-MT4 | 165 | 196.9 | 256.2 | 368.9 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30H-209-MT4 | 209 | 241.3 | 300.6 | 413.3 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30H-260-MT4 | 260 | 291.8 | 351.1 | 463.8 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30H-349-MT4 | 349 | 381 | 440.3 | 553 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30S-349-MT4 | 349 | 381 | 440.3 | 553 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30S-559-MT4 | 559 | 590.6 | 649.9 | 762.5 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30S-787-MT4 | 787 | 819.2 | 878.5 | 991.1 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
35系列(φ42.0-φ47.9) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD35S-121-MT4 | 121 | 152.4 | 211.7 | 324.4 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD35H-165-MT4 | 165 | 196.9 | 256.2 | 368.9 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD35H-209-MT4 | 209 | 241.3 | 300.6 | 413.3 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD30H-260-MT4 | 260 | 291.8 | 351.1 | 463.8 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD35H-349-MT4 | 349 | 381 | 440.3 | 553 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD35S-349-MT4 | 349 | 381 | 440.3 | 553 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD35S-559-MT4 | 559 | 590.6 | 649.9 | 762.5 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
SD35S-787-MT4 | 787 | 819.2 | 878.5 | 991.1 | MT4 | 1/4 | RK-MT4R | M5*10 | T20 |
40系列(φ48.0-φ65.28) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD40S-130-MT5 | 130 | 165.1 | 225 | 369.4 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40H-232-MT5 | 232 | 266.7 | 326.6 | 471 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40S-350-MT5 | 350 | 384.9 | 444.8 | 589.2 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40H-350-MT5 | 350 | 384.9 | 444.8 | 589.2 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40H-422-MT5 | 422 | 457.2 | 517.1 | 661.5 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40S-422-MT5 | 422 | 457.2 | 517.1 | 661.5 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40S-625-MT5 | 625 | 660.4 | 720.3 | 864.7 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD40S-879-MT5 | 879 | 914.4 | 974.3 | 1118.7 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
45系列(φ56.0-φ65.28) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD45S-130-MT5 | 130 | 165.1 | 225 | 369.4 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45H-232-MT5 | 232 | 266.7 | 326.6 | 471 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45S-350-MT5 | 350 | 384.9 | 444.8 | 589.2 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45H-350-MT5 | 350 | 384.9 | 444.8 | 589.2 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45H-422-MT5 | 422 | 457.2 | 517.1 | 661.5 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45S-422-MT5 | 422 | 457.2 | 517.1 | 661.5 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45S-625-MT5 | 625 | 660.4 | 720.3 | 864.7 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
SD45S-879-MT5 | 879 | 914.4 | 974.3 | 1118.7 | MT5 | 1/4 | RK-MT5R1 | M5*15 | T20 |
50系列(φ65.3-φ89.08) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD50S-171-MT5 | 171 | 215.9 | 287.3 | 430.2 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD50H-273-MT5 | 273 | 317.5 | 388.9 | 531.8 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD50S-464-MT5 | 464 | 508 | 579.4 | 722.3 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD50S-660-MT5 | 660 | 704.8 | 776.2 | 919.1 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD50S-889-MT5 | 889 | 933.4 | 1004.8 | 1147.7 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
70系列(φ89.1-φ114.48) |
型号 | L1 | L2 | L3 | L | A | B | 外罩 | 螺丝 | 扳手 |
SD70S-171-MT5 | 171 | 225.4 | 296.8 | 439.7 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD70H-273-MT5 | 273 | 327 | 398.5 | 541.3 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD70S-556-MT5 | 556 | 609.6 | 681.1 | 823.9 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD70S-685-MT5 | 685 | 739.7 | 811.2 | 954 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SD70S-939-MT5 | 939 | 993.7 | 1065.2 | 1208 | MT5 | 1/2 | RK-MT5R2 | M6*15 | T25 |
SAVANT舍弃式钻头分为快速钻、VMD大钻头、铲钻及剑齿钻。为您提高生产效率降低生产成本!
根据您不同的孔径、公差、光洁度要求,我们帮你选用合适的快速钻、VMD大钻头、铲钻及剑齿钻。
